MA 3X1600mm Automation for old-rolled Coil Cut –To-Length Blacking Lines with High-precision

Name: MA 3X1600mm Automation for oldrolled Coil Cut ToLength Blacking Lines with Highprecision
Brand: MAZS
Price: 1 USD

China MA 3X1600mm Automation for old-rolled Coil Cut –To-Length Blacking Lines with High-precision wholesale

Brand Name : MAZS

Model Number : MA 3X1600mm

Certification : CE,ISO

Place of Origin : MADE IN CHINA

MOQ : 1set

Delivery Time : 120 working days

Packaging Details : Machine will be fixed inside container by steel wire(Export standard sea package)

Coil Material : δs≤230N/mm²,Cold-rolled Coil,Stainless Steel Coil,Galvanized Coil,AL,Copper

Coil Thickness : 0.3-3.0mm

Coil Width : 800-1250/1600mm

Coil Weight : ≤20T(25T) Φ508 & Φ610mm

Coil I.D : Φ508mm

Coil O.D : ≤Φ2000mm

Linear Speed : 0-60m/min

Control System : PLC Automatic control

Voltage : 380V 50Hz 3phases or order by the user

Color : As our standard or order by user

Contact Now

MA 3X1600mm Automation for old-rolled Coil Cut –To-Length Blacking Lines with High-precision

1.General Introduction:

This production line is used for coil with different specifications, through uncoiling, leveling and cutting to length to flattened plate as needed length and width.

2.Detailed technical parameter:

Model	MA-1.2	MAZS-2.0	MA-3.0	MA-4.0
Coil Material	δs≤230N/mm²,Cold-rolled Coil,Stainless Steel Coil,Galvanized Coil,AL,Copper
Coil Thickness	0.11-1.2mm	0.2-2.0mm	0.3-3.0mm	0.5-4.0mm
Coil Width	300-800mm	800-1250mm	800-1250/1600mm	800-1600/1800mm
Coil Weight	≤10T	≤20T	≤20T(25T) Φ508 & Φ610mm	≤25T(30T) Φ508 & Φ610mm
Coil I.D	Φ508mm	Φ508mm	Φ508mm	Φ508mm
Coil O.D	≤Φ1800mm	≤Φ1800mm	≤Φ2000mm	≤Φ2000mm
Cutting Range	300-3000mm	300-4000mm	300-4000mm	300-4000mm
Cutting Accuracy Roller Diameter	±0.3mm Φ65(50)	±0.3mm Φ65(50)	±05mm Φ85(65)	±05mm Φ100(80)
Linear Speed	0-60m/min	0-60m/min	0-60m/min	0-60m/min
Control System	PLC Automatic control	PLC Automatic control	PLC Automatic control	PLC Automatic control

3.Production line flowing chart:

MA 3X1600mm Automation for old-rolled Coil Cut –To-Length Blacking Lines with High-precision

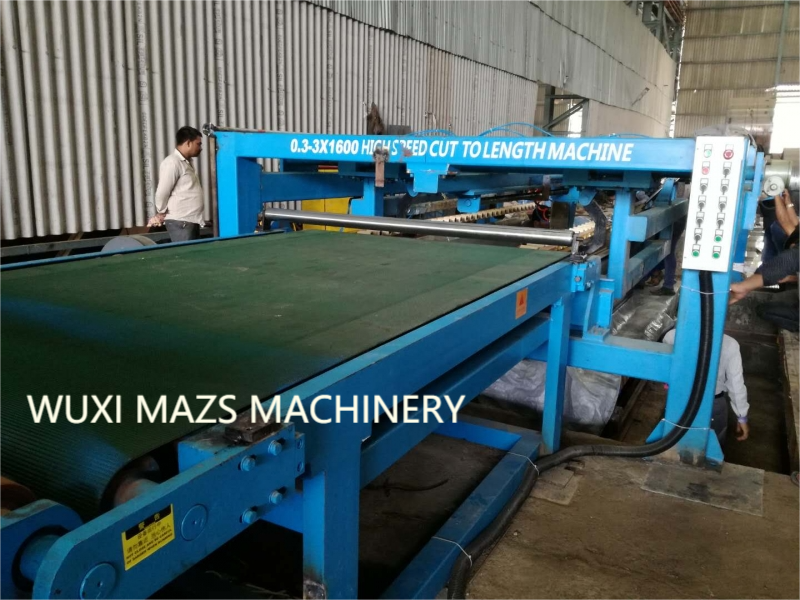

4.Machine Photo for reference:

MA 3X1600mm Automation for old-rolled Coil Cut –To-Length Blacking Lines with High-precision

5. What service we can get from your company?

- VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.

We are 24/7 online available for you to answer your questions and solve your problems.

6. Quality Inspection

The machines of our company have many certificates like ISO 9001, CE, SGS, etc.

Before the shipping, we have a series of quality check system, includes 3 times of inspection for every production procedure. First inspection needs the workers to check and sign on the test report. Second inspection involves department leaders to check and sign on the test report. The Third inspection needs professional inspector to check and ensure the machines are qualified.

We also give 12 month warranty time to the customer.
