50m/min High Frequency Welded Tube Mill With Double Head Decoiler

Name: 50mmin High Frequency Welded Tube Mill With Double Head Decoiler
Brand: MAZS
Price: 1 USD

China 50m/min High Frequency Welded Tube Mill With Double Head Decoiler wholesale

Model Number : MA 45 High-frequency Welding Pipe Mill

Place of Origin : Wuxi, Jiangsu

MOQ : 1 SET

Payment Terms : T/T, L/C

Delivery Time : 90 working days

Packaging Details : Wrapping films and wooden cases

Brand Name : MAZS

Certification : CE,ISO

Supply Ability : 30sets per year

Price : USD

Raw material : pipe mill

Coil width : 60~160mm

Coil outer diameter : Max. Φ1600mm

Coil inner diameter : Φ508mm

Coil weight : Max.2.5T

Material thickness : 0.8~2.5mm for Round pipes

Round pipe size : Φ20mm~Φ50mm * 0.8mm~2.5mm

Square pipe size : 16×16x1.5mm, 20x20x1.8mm, 25x25x2mm, 30x30x2mm, 40x40x2mm

Rectangle pipe size : 25x50x2mm

Producing length : 4~10m

Producing speed : 30~80m/min

Contact Now

1.Description of goods:

MA-Φ219 High Frequency Welded Pipe machine for all kinds of pipe with double head decoiler

2.Specification:

Material to be processed: carbon steel, cold hot rolled pre slit strip coils of weld able grade with max. 0.2% carbon

Type of Production: Round Tubes Squar, Square and Rectangular Hollow Sections

Round Tube Outside Diameter: Min 114, Max 219mm

Square Hollow Section: Min 90 x90, Max 170x170 mm

Rectangular Hollow Section: Min 80x 100, Max140x 200 mm

Tube Thickness: Min 2.2, Max 8.0 mm

Forming Line Speed: Max 45m/min (Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)

Tube Cut Length: Min 4 Max 12 meter

Length Accuracy: ± 3mm

3.Technical paramater:

Model No.	MA114	MA125	MA165	MA219
Outer diameter	Φ40~114 MM	Φ50~130 MM	Φ76~165 MM	Φ89~219 MM
Wall thickness	1.2~4.0 mm	2.0~5.0 mm	2.0~6.0 mm	3.0~6.0 mm
Production speed	0~70 m/min.	0~60 m/min.	0~50 m/min.	0~50 m/min.
Driving motor power	132 Kw*2 sets	160 +200 Kw	200 Kw*2 sets	200 Kw*3 sets
HF welder power	300 KW	400 KW	500 KW	500 KW

50m/min High Frequency Welded Tube Mill With Double Head Decoiler

Product Tags:

ISO high frequency welded tube mill

50m/min high frequency welded tube mill

500KW steel tube mill

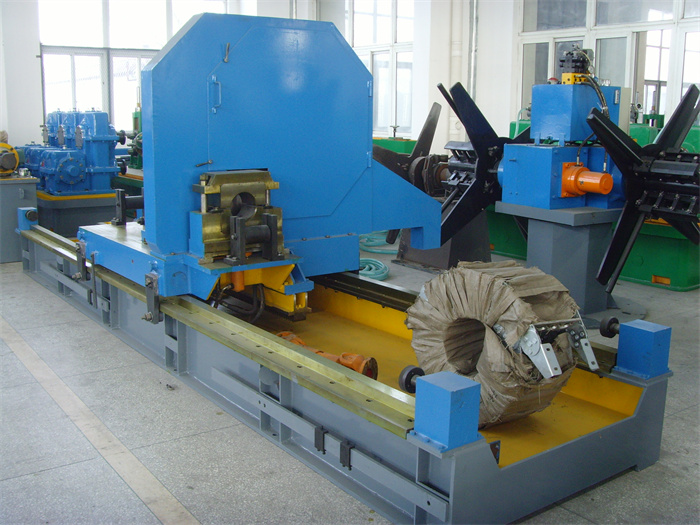

50m/min High Frequency Welded Tube Mill With Double Head Decoiler Images
